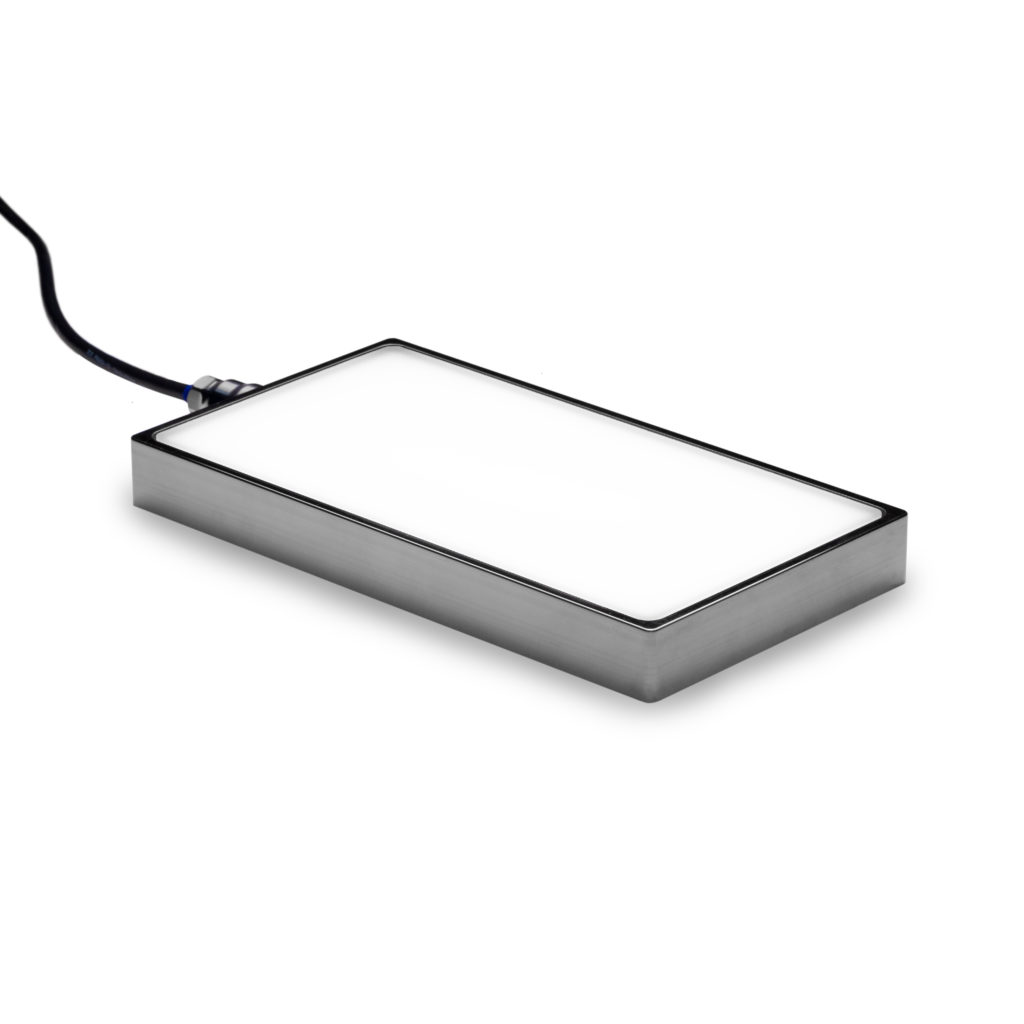

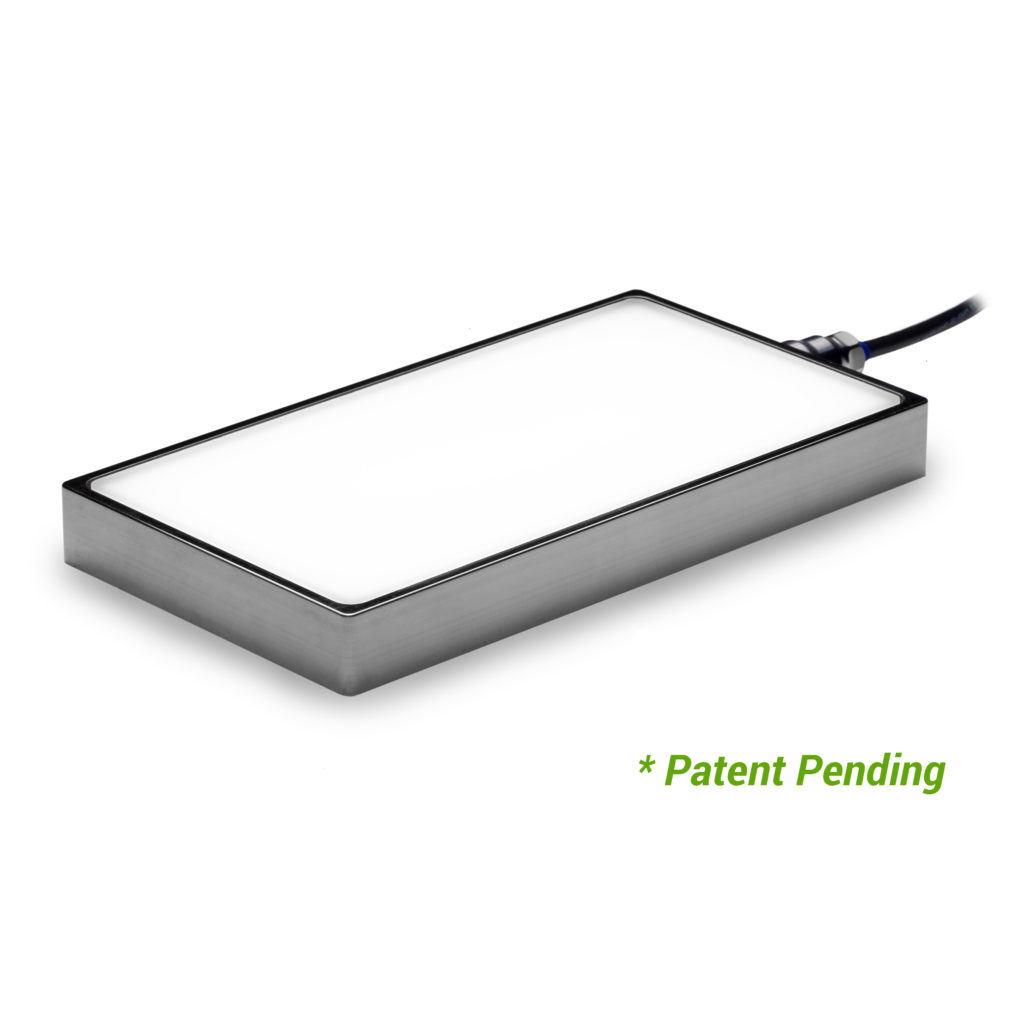

Backlights

Back Lighting provides an area of uniform illumination, oriented behind the object of interest, primarily for creating a part silhouette of instant contrast between dark and light.  It is most useful for edge detection, part location/orientation or presence/absence, hole detection and object gauging. Linear back lights can also be deployed behind a moving web of material when used in conjunction with line scan cameras, when intensities are enough to freeze motion.

x
BLXXYY
Surface mount technology
Scalable to your application
Custom sizes at standard lead time
Uniformity and intensity consistent regardless of size
Wavelengths
470nm 520nm 625nm 880nm White
Intensity
3,000 Lux
Lead Time
In Stock
Light Conditioning
Polarizer
Learn More
x
BXXXYY
High current rated LEDs
Scalable to your application
Value pricing
Performance reducess as size increases
Wavelengths
455nm 530nm 625nm 850nm White
Intensity
10,300 Lux
Lead Time
2 Weeks
Light Conditioning
Polarizer
Learn More
x
CBXXYY
Surface mount technology
Scalable to your application
Collimated for narrower emission angle
uniformity and intensity consistent regardless of size
Wavelengths
470nm 520nm 660nm 880nm White
Intensity
14,700 Lux
Lead Time
In Stock
Light Conditioning
Collimator
Learn More
x
CXXXYY
High current rated LEDs
Scalable to your application
Collimated for narrower emission angle
Performance reduces as size increases
Wavelengths
455nm 530nm 625nm 850nm White
Intensity
22,200 Lux
Lead Time
In Stock
Light Conditioning
Collimator
Learn More
