Our MicroBrite™ DF198 Series provides diffuse illumination at a low angle to cast shadows used to identify surface defects, embossed text, etc.

This dark field ring light is more diffuse and less directional than the DF196.

Can be used to produce a bright field effect when the outer diameter is smaller than the working distance.

Part of the MicroBrite™ family of high performance, compact machine vision lights.

Provides diffuse illumination at a low angle to cast shadows used to identify surface defects, embossed text, etc.

This dark field ring light is more diffuse and less directional than the DF196.

Can be used to produce a bright field effect when the outer diameter is smaller than the working distance.

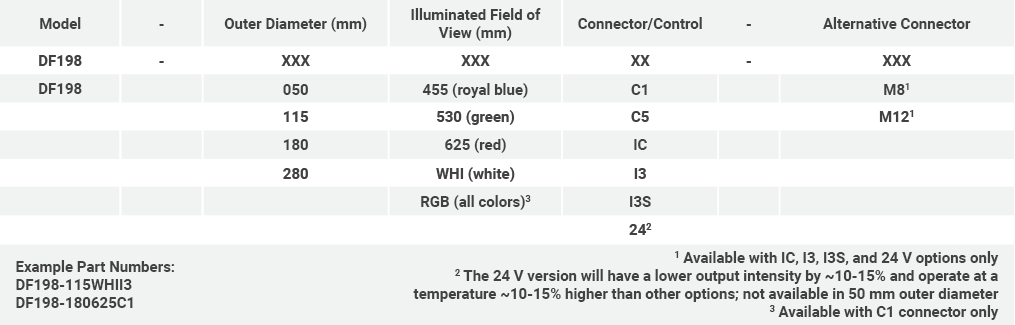

Available in 4 sizes with an intesity of 47klux (working distance of 64mm with DF198-180).

Electrical Specifications
Part Number
Color
24V Current
All Other Controls
DF198-050
625
N/A
0.13A Max
DF198-050
455, 530, WHI
N/A
0.22A Max
DF198-050
RGB
N/A
0.65A Max
DF198-115
625
0.32A
0.32A Max
DF198-115
455, 530, WHI
0.32A
0.54A Max
DF198-115
RGB
N/A
0.95A Max
DF198-180
625
0.64A
0.58A Max
DF198-180
455, 530, WHI
0.64A
0.97A Max
DF198-180
RGB
N/A
2.55A Max
DF198-280
625
0.96A
0.58A Max
DF198-280
455, 530, WHI
0.96A
0.97A Max
DF198-280
RGB
N/A
3.60A Max
Normal Operating Temperature
0 - 60°C
Weight
DF198-050: 61.7g (2.18oz)
DF198-115: 128.8g (4.54oz)
DF198-180: 227.7g (8.03oz)
DF198-280: 358.3g (12.64oz)
Standard Cable Information
Up to 2 meters (80") long - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor
Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI, RGB
Compliance
CE, RoHS, IEC 62471
IP Rating
IP40
Lumen Maintenance
L70 = 50,000 Hours
