Small Dome Light
DL194
The Small Dome Light is available in a wide range of wavelengths including a 3 channel, RGB configuration.
Rugged, cast aluminum housing has an outer diameter of 5.25” (133.3mm) and an inner, working diameter of 3.1” (78.7mm).

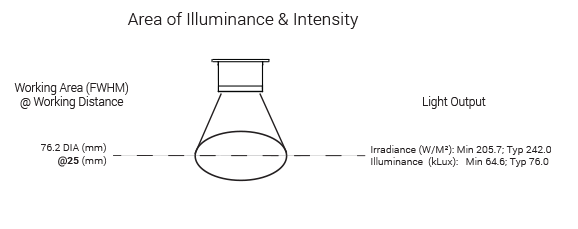

Provides up to 79kLux at a 1” (25mm) standoff.
PCN No: 131
Date Issued: June 24, 2016
Notice Type: Product Revision Change
Product Type: DL194
Change Notification Summary
In an effort to improve our products, Advanced illumination (Ai) will update the LEDs used in the DL194 design. This change will result in a brighter, more uniform light at the same price. Customers may still buy the current revision of this model until September 23rd of 2016. After that time, orders for these products will be converted to their respective DL194 Revison A models.
This LED change will result in additional wavelengths being available: 455nm, 505nm, 590nm, 660nm, 730nm and 940nm.
Additionally the white LED color temperture will be changing from 6100K to 5500K. Orders for customized (dash numbers) versions of DL194 will be honored until March 17th of 2017. Ai will be actively working with customers for those products to simplify the transition.
Please contact your Ai Sales Representative if you have any questions.
Electrical Specifications
Color
24V Current
All Other Controls
RGB
0.36A
TBD
WHI, 455
0.36A
0.80A Max
470, 505, 530, 590
0.36A
0.85A Max
625, 660, 730, 850, 940
0.36A
0.62A Max
Normal Operating Temperature
0 - 60°C
Weight
439.9g (15.52)
Standard Cable Information
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor
Exempt Applicable Wavelengths: 580, 940
Group 1 (Low-Risk) Applicable Wavelengths: 505, 530, 590, 625, 660, 730, WHI, RGB
Group 2 (Moderate-Risk) Applicable Wavelengths: 455, 470
Group 1 (Low-Risk) Applicable Wavelengths: 505, 530, 590, 625, 660, 730, WHI, RGB
Group 2 (Moderate-Risk) Applicable Wavelengths: 455, 470
Compliance
CE, RoHS, IEC 62471
IP Rating
Not Rated
Lumen Maintenance
L70 = 50,000 Hours
