Back-lit Flat Diffuse Lights provide a space saving design for the illumination of highly reflective objects.

For similar performance in a thinner housing, refer to our Edge-lit Flat Diffuse Lights (FX Series).

Back-lit Flat Diffuse Lights provide a space saving design for the illumination of highly reflective objects.

Two aperture diameters are available, .88” (22.3mm) and 1.75” (44.5mm).

For similar performance in a thinner housing, refer to our Edge-lit Flat Diffuse Lights (FX Series).

Available in visible and infrared wavelengths with an optional polarizer.

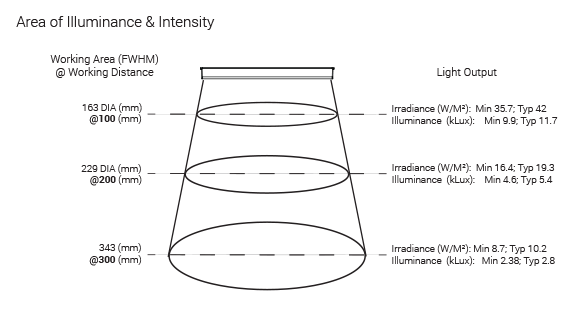

Provides light intensities of up to 11.7kLux at 4” (102mm) standoff.

Pre-engineered, expandable sizes are available from 3”x 3” (76mm) to 22”x 34” (559 x 864mm) in 1” (25mm) increments.

PCN No: 152

Date Issued: June 15, 2020

Notice Type: Product Revision Change

Product Type: BLXXYY, CBXXYY, FDXXYY, BL128, BL193, BL245

Change Notification Summary

In an effort to improve our products, Advanced illumination (Ai) will be updating the internal drivers and white LEDs used in the BLXXYY, CBXXYY, FDXXYY, BL128, BL193, and BL245. This change will result in white lights seeing a brightness increase of roughly 70% while maintaining equal pricing for small configurations and reduced pricing for large configurations. Excluding the BL128, 24V configured units will experience a current draw shift from 20mA to 30mA per sq. inch for 470nm, 520nm and white units while controller configured units will see a current draw shift from 15mA to 18mA per sq. inch for the same color configurations. Color temperatures will remain unchanged.

The LED upgrade and internal driver update for white color configurations will take place September 15th. The internal driver updates will occur November 9th for 470nm and January 7th for 520nm.

Please contact your Ai Sales Representative if you have any questions.

PCN 152

Electrical Specifications
Color
24V Current
All Other Controls
470, 520, 660, 880, WHI
0.03A per sq. inch
0.018A Max per sq. inch
Normal Operating Tempurature
0 - 60°C
Weight
8" X 8" Unit - 997.9g (35.2oz)
Standard Cable Information
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor
Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance
CE, RoHS, IEC 62471
IP Rating
IP50
Lumen Maintenance
L70 = 50,000 Hours
