The BL2 Series provides a highly uniform and high intensity, diffuse backlight source, primarily used for creating object silhouettes of high contrast or imaging through semi-translucent materials.

BL2 Backlights are pre-engineered for scalability, allowing for size configurations in 1″ increments up to 46″ in length and width.

This Backlight series is offered in 5 wavelength options and can be configured with either a polarization or collimation film.

The BL2 Series provides a highly uniform and high intensity, diffuse backlight source, primarily used for creating object silhouettes of high contrast or imaging through semi-translucent materials.

BL2 Backlights are pre-engineered for scalability, allowing for size configurations in 1″ increments up to 46″ in length and width.

This Backlight series is offered in 5 wavelength options and can be configured with either a polarization or collimation film.

As with all Advanced illumination products, this series is built for tailorability while still maintaining a standard lead time of one to three weeks.

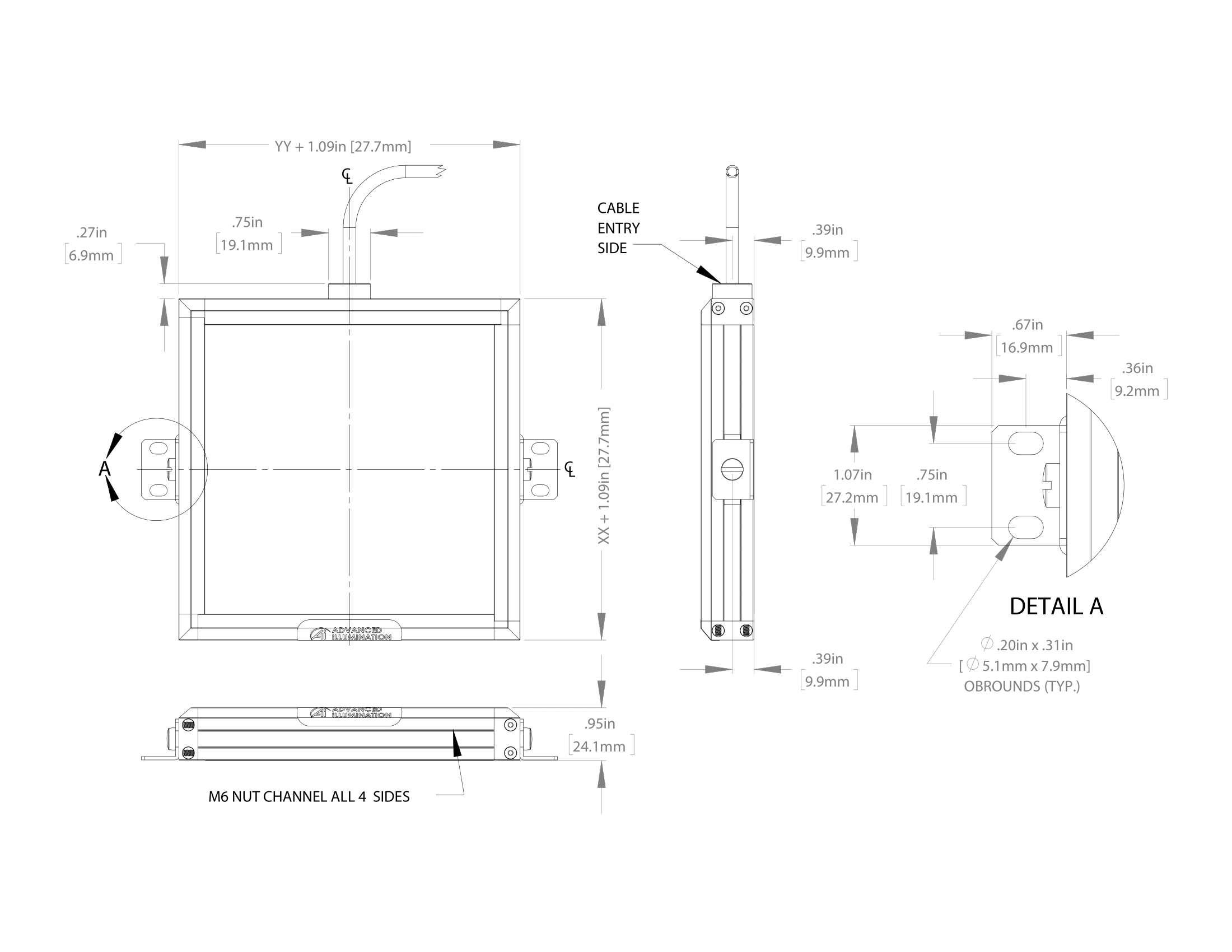

Each side of a BL2 is equiped with M6 nut channels, allowing for quick and easy mounting. This series comes with our LB111 Mounting Brackets.

Electrical Specifications
Color
24V Current
All Other Controls
WHI
0.015A per sq. inch
0.0157A per sq. inch
470, 530
0.015A per sq. inch
0.0086A per sq. inch
625
0.015A per sq. inch
0.0055A per sq. inch
850
0.015A per sq. inch
0.0079A per sq. inch
Normal Operating Tempurature
0 - 60°C
Weight
12" x 12" Unit - 2204g (77.76oz) (4.86lbs)
Standard Cable Information
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor
Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 470, 530, 625, WHI
Compliance
CE, RoHS, IEC 62471
IP Rating
Not Rated
Lumen Maintenance
L70 = 50,000 Hours
In Stock
BL2-020262524
BL2-040462524
BL2-080862524
