The RL121 is characterized as a Small High Dispersion Bright Field ring light.
Non-lensed LEDs disperse light at broad angles, providing “soft” lighting for applications that require short working distances.
The RL121 is characterized as a Small High Dispersion Bright Field ring light.
Non-lensed LEDs disperse light at broad angles, providing “soft” lighting for applications that require short working distances.
The low-profile design is only .56” (14.2mm) thick, allowing it to be used in space constrained applications.
Optional adapter rings are available for camera lens mounting.
A wide variety of wavelengths are available from UV to IR. An optional polarizer and/or diffuser may be used to further condition the light output.

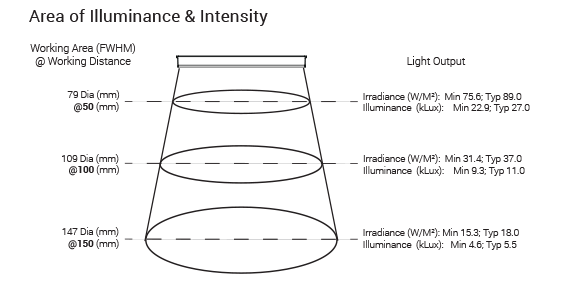

The RL121 delivers 27kLux at a working distance of 50mm.
Electrical Specifications
Color
24V Current
All Other Controls
365, 375, 385, 395, 405
0.24 A
0.31 A Max
455, 470, 530, WHI
0.24 A
0.29 A Max
590, 625
0.12 A
0.29 A Max
850, 940
0.24 A
0.27 A Max
Normal Operating Temperature
0 - 60°C
Weight
164g (5.78oz)
Standard Cable Information
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain
Photobiological Risk Factor
Exempt Applicable Wavelengths: 850, 940
Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI
Group 2 (Moderate Risk) Application Wavelengths: 365, 375, 385, 395, 405
Group 1 (Low Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI
Group 2 (Moderate Risk) Application Wavelengths: 365, 375, 385, 395, 405
Compliance
CE, RoHS, IEC 62471
IP Rating
IP50
Lumen Maintenance
L70 = 50,000 Hours
CAD Files
- RL121 STEP (ZIP)
- RL121 TA25.5-35.5 Adapter Ring STEP (ZIP)
- RL121 TA27-35.5 Adapter Ring STEP (ZIP)
- RL121 TA30.5-35.5 Adapter Ring STEP (ZIP)
Drawings
- RL121 Installation Drawing (PDF)
- RL121 TA25.5-35.5 Adapter Ring Installation Drawing (PDF)
- RL121 TA27-35.5 Adapter Ring Installation Drawing (PDF)
- RL121 TA30.5-35.5 Adapter Ring Installation Drawing (PDF)
