Looking for the perfect lighting solution but don’t know how you can find exactly what you need?  Look no further!  Advanced illumination’s Online Configurator allows you to quickly tailor one of our products to fit perfectly into your integrated solution.

Click the image of a lighting category below that best fits your application, and then choose between the built-to-order lights featured in that category.  To customize the lights, simply click the image of the light you’d like to configure, and you will be directed to the unique Configurator Tool from Ai.  Within the Ai Configurator you can customize your lights by size, wavelength, power options, and more!  Then just submit the form and a representative will be in contact with information on pricing and availability.

Want to learn more about each light’s technical product information before beginning your build-to-order process?  Click the button below to view all available lights and filter by your unique application needs.

Choose A Lighting Category

Backlights

Bar Lights

Bright Field Ring Lights

Coaxial Lights

Spot Lights

Line Lights

Dark Field Ring Lights

Diffuse Lights

Backlights

Backlighting provides an area of uniform illumination, oriented behind the object of interest, primarily for creating a part silhouette of instant contrast between dark and light. It is most useful for edge detection, part location/orientation or presence/absence, hole detection, and object gauging. Linear Backlights can also be deployed behind a moving web of material when used in conjunction with line scan cameras.

BL Series
Back-Lit Backlights

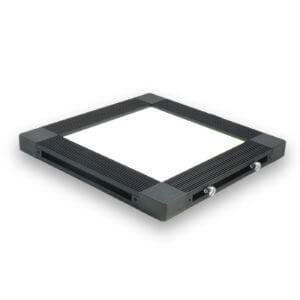

BX Series
Edge-Lit Backlights

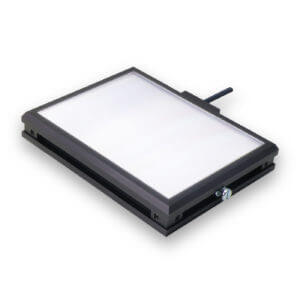

CB Series
Back-Lit Collimated Backlights

CX Series
Edge-Lit Collimated Backlights

BT Series
MicroBrite™ Backlights

BL128
Compact Linear Backlights

BL138
High Intensity Linear Backlights

BL193
Medium Intensity Linear Backlights

BL245
UltraSeal Washdown Backlights

BL-S100150
EuroBrite™ Large Backlight

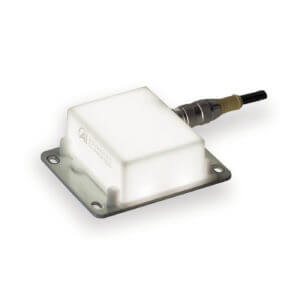

BL-S050075
EuroBrite ™Small Backlight

Return to Light Categories

Bar Lights

Bar Lights, also known as Linear Array Lights, offer both bright field and dark field illumination, depending on angle of incidence. Because of the variety of lengths available, Bar Lights are useful for large area illumination when used in opposing pairs or in a picture frame mounting orientation. Bar Lights can substitute for Spot or Ring Lights when greater intensity is required.

AL295
MicroBrite™ Bar Lights

LL174
High Intensity Bar Lights

AL150
BALA Bar Lights

AL126
High Dispersion Narrow Bar Lights

AL116
High Dispersion Wide Bar Lights

AL247
UltraSeal Washdown Bar Lights

AL-S025300
EuroBrite™ Bar Light

Return to Light Categories

Line Lights

Line Lights, as opposed to Linear Array Bar Lights, employ a secondary lens to focus the light into a narrow beam, typically for short to intermediate working distances. Line Lights are mostly used in conjunction with line scan cameras and are typically mounted in a medium to high angle bright field orientation.  As with any line scan application involving moving surfaces, the lights must have sufficient intensity to freeze motion.

LL230
Ultra High Intensity Line Lights

LL232
MicroBrite™ Line Lights

LL137
Medium Intensity Line Lights

LL163
Classic Line Lights

LL158
Oblique Line Lights

LL174
Oblique Line Lights

Return to Light Categories

Spot Lights

Spot Lights are typically characterized as general-purpose illuminators. They may be used to create both bright field and dark field effects, depending on the light angle of incidence. Working distances can be short to long, depending on available intensity and beam spread. Small Spot Lights are beneficial when deployed in tight spaces.

SL246
Large High Intensity Spot Light

SL164
Small High Intensity Spot Light

SL073
Small Spot Light

AL143
2×3 Spot Light

SL147
2×2 Spot Light

SL162
High Intensity Spot/Coaxial Light

SL112
Medium Intensity Spot/Coaxial Light

SL223
MicroBrite™ Spot/Coaxial Light

SL244
MicroBrite™ Spot Light

SL243
MicroBrite™ Small Spot Light

SL1236
Large Aimed Spot Light

SL2420
Medium Aimed Spot Light

SL2507
Small Aimed Spot Light

SL256
High Intensity Pattern Projecting
Spot Light

SL191
Pattern Projection Spot Light

SL-S100150
EuroBrite™ Large Spot Light

SL-S050075
EuroBrite™ Small Spot Light

Return to Light Categories

Dark Field Ring Lights

Dark Field Ring Lights provide illumination that is projected at a shallow angle to the imaging surface, 45 degrees or less.  Typical applications include reflective flat surface defect or edge detection, where the majority of the light may reflect away from the camera on the flat, featureless surface, but defects may scatter the light to the camera, creating feature-appropriate contrast.  Dark field illuminators can be dedicated ring lights or any general bar or spot light oriented at low angles of incidence, depending on defect orientation.

DF198
MicroBrite™ Diffuse Ring
Light Series

DF196
MicroBrite™ Direct Dark Field
Series

RL3536
Aimed Dark Field

RL2115
Compact Aimed Dark Field

RL3940
Folded Beam Dark Field

RL5064
Dual Function Ring Light

DF241
Small Low Angle Dark Field

DF242
Large Low Angle Dark Field

Return to Light Categories

Bright Field Ring Lights

Bright Field Ring Lights provide illumination directly onto an object, at angles of incidence above 45 degrees from horizontal, creating distinct shadows or general purpose illumination, depending on subject features.  This type of lighting is effective when used on objects requiring high degrees of contrast, but may create unwanted specular reflections when directed at shiny or reflective materials because of the high angle of incidence. Working distances can be short to very long.

DF198
MicroBrite™ Diffuse Ring
Light Series

RL208
MicroBrite™ Direct Bright
Field Series

RL113
High Intensity Bright Field

RL127
Large High Dispersion
Bright Field

RL121
Small High Dispersion
Bright Field

RL5064
Dual Function Ring Light

RL36120
Large Aimed Bright Field

RL4260
Medium Aimed Bright Field

RL1424
Small Aimed Bright Field

RL2316
Very Small Aimed Bright Field

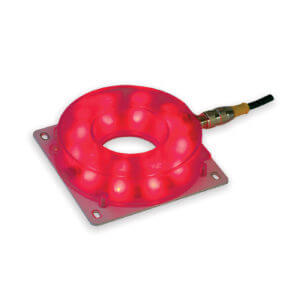

RL-S052120
EuroBrite™ Ring Light

Return to Light Categories

Diffuse Lights

Diffuse Lights, also known as “cloudy-day illuminators” provide non-directional, soft illumination that is free of shadowing.  This effect is well suited for inspecting highly specular and curved objects, but at close working distances.  The light I.D. needs to be approximately 50% oversized compared with the object size to be illuminated.

FD Series
Back-Lit Flat Diffuse Lights

FX Series
Edge-Lit Flat Diffuse Lights

DL067
Wide Linear Diffuse Lights

DL151
Narrow Linear Diffuse Lights

DL2230
Extra Small Dome Light

DL194
Small Dome Light

DL097
Medium Dome Light

DL080
Large Dome Light

DL071
Large Area Diffuse Light

DL180
Extra Large Dome Light

Return to Light Categories

Coaxial Lights

Coaxial Lights provide a type of diffuse illumination, generated from an internal source.  The light is then deflected downward onto the imaging plane via a 50% beamsplitter, which also allows light from the object to be collected by the camera above.  Ideal for imaging highly reflective objects or where the area of inspection is obscured by shadows from its surroundings.

DL225
Square Coaxial Light Series

DL110
Linear Coaxial Light

Return to Light Categories

Custom Lights for Machine Vision

Using the Ai Configurator Tool gives you the power to customize our LED lighting to fit your unique machine vision application needs.  With hundreds of thousands of Build-to-Order (BTO) combinations available – all shipped within 1-3 weeks – you’re sure to find the perfect solution.

Need a product that requires additional design and documentation effort?  No problem!  Our Engineering Team is available to work with you to develop a Semi-Custom or full Custom light, designed to your specifications.

Ai Online Configurator
