The RL3536 is characterized as an Aimed Dark Field ring light.
Precisely aimed LEDs provide a specific and repeatable light pattern on the imaging plane.
Aimed Dark Field
RL3536
The RL3536 is characterized as an Aimed Dark Field ring light.
Precisely aimed LEDs provide a specific and repeatable light pattern on the imaging plane.

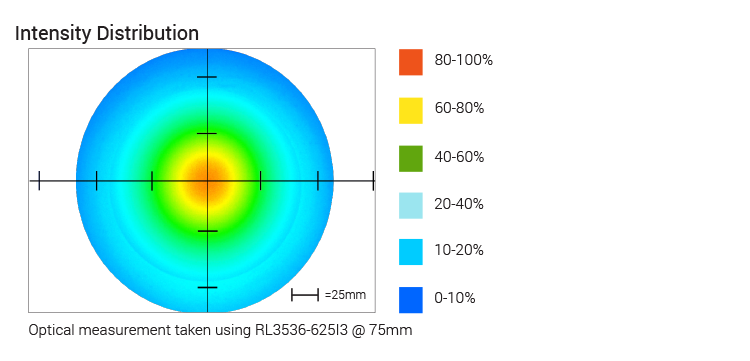

Provides up to 8.4kLux at a working distance of 3” (76mm).
The light is available in a wide range of wavelengths from UV to IR.
Diffuser and polarizer options are also available.
The large inner diameter of the ring light can accommodate lenses up to 55mm in diameter.
The light can also be ordered with an optional mounting ring.
Electrical Specifications
Color
24V Current
All Other Controls
625, 660, 880
0.18A
0.162A Max
395, 470, 520, WHI
0.12A
0.108A Max
Normal Operating Temperature
0 - 60°C
Weight
249.5g (8.80oz)
Standard Cable Information
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor
Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, 660, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 395
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, 660, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 395
Compliance
CE, RoHS, IEC 62471
IP Rating
Not Rated
Lumen Maintenance
L70 = 50,000 Hours
CAD Files
Drawings
- RL3536 Model A (Standard Barrel) Installation Drawing (PDF)
- RL3536 Model B (3 Point Mounting Barrel) Installation Drawing (PDF)
